01 — Mixed materials
You cut more than one material.
One machine for all of them — metal, stone, glass, wood, rubber, food. No tool change, no heat.
Waterjet cutting machines, configured to your material and thickness.
Standard 3 × 2 m platform, abrasive head, intensifier pump. We start from a proven configuration and only change what your work actually needs.
- Default model
- WCM-G3020
- Cutting travel
- 3000 × 2000 mm
- Pressure
- 380–400 MPa
- Cutting accuracy
- ±0.1 mm
§01 / Fit
Who we build for.
Waterjet is a strong tool for a specific kind of shop. Before we recommend a machine, we'd rather say where it pays back fastest — and where it doesn't.
→ A good fit
02 — Thick or exotic
You cut thick, or materials a laser can't.
Carbon steel up to 100 mm, stainless, aluminium, titanium, copper, stone slabs, thick composites. If your daily work includes any of these, waterjet is the right tool.
03 — First waterjet
You're buying your first waterjet.
We recommend a proven standard configuration and tell you what you don't need. Most first-time buyers don't need 5-axis or the largest pump option — and we'll say so.
× Not the right fit
04 — Thin steel only
Your work is mostly thin ferrous sheet.
Fiber laser is faster and cheaper for steel under ~20 mm. Waterjet wins when you also cut non-ferrous metals, stone, glass, or composites — not before.
05 — Turnkey line
You need a complete turnkey line.
We don't sell robot loading + cutting + sorting + MES as one package. If you or your integrator are building a line, we supply the cutting cell inside it.
06 — Lowest-price only
Lowest purchase price is the only criterion.
We start from a stable standard platform and only simplify where the job allows. If the decision comes down to cheapest quote wins, we'll lose — and that's fine.
§02 / Machine
Our default recommendation: the 3 × 2 m cutting table.
If you tell us about a new waterjet project and we don't hear a specific reason to go bigger, we recommend the 3 × 2 m cutting table with our standard high-pressure pump and CNC configuration. It's the model we've shipped and supported the most over 12 years.

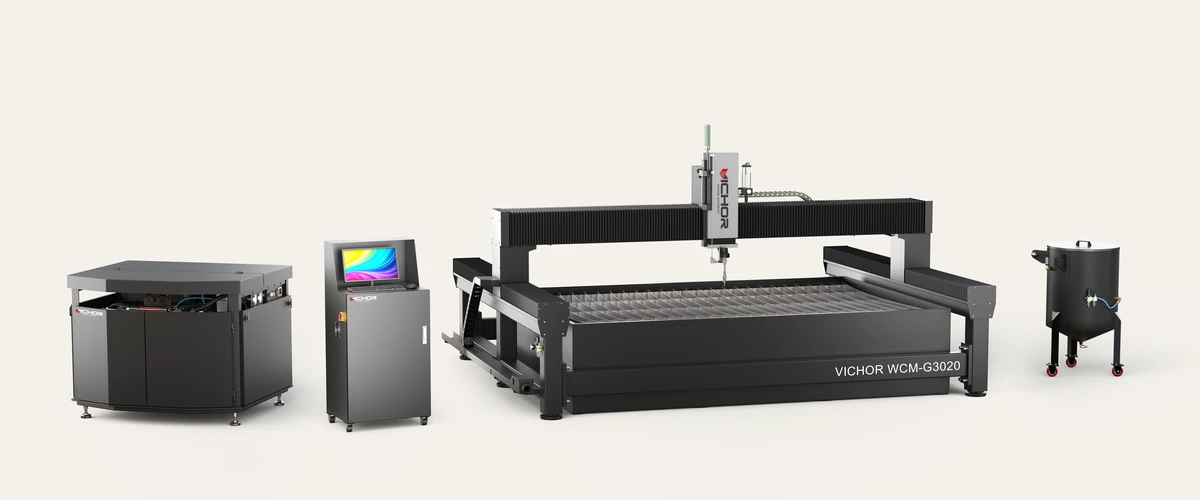

WCM-G3020 — full machine, shop angle
3 × 2 m bed · gantry · pump cabinet
[ /assets/machines/wcm-g3020-shop.webp ]
DETAIL — abrasive cutting head + gantry
[ /assets/machines/wcm-g3020-head-detail.webp ]
Standard configuration
WCM-G3020
| Complete machine model | WCM-G3020 |
|---|---|
| Cutting travel (X × Y) | 3000 × 2000 mm |
| Linear positional accuracy | ±0.02 mm/m |
| Repeatability | ±0.01 mm |
| Cutting accuracy | ±0.1 mm |
| Rapid traverse (max) | 13 m/min |
| Pump model | WCM-P60IV — 4th-generation intensifier |
| Pump output | 37 kW (50 HP)* |
| Continuous working pressure | 380–400 MPa (55,000–58,000 psi) |
| Max pressure | 430 MPa (62,000 psi) |
| CNC / Controller | NC100 |
| Cutting head | 3-axis standard (5-axis available) |
| Abrasive delivery | Standard pressurized hopper |
| Key components | Innomotics main motor (ex-Siemens), Siemens PLC, Rexroth hydraulic pump, THK linear guides, HIWIN ball screws |
Cutting travel describes actual working area, not outer table footprint. We confirm floor-space requirements during quoting. * Power ratings are nameplate maximums.
Warranty
- 2-year machine warranty — 24 months or 4,000 hours
- 5-year warranty on intensifier core components
- UHP consumables excluded
01 — Sheet fit
It fits most New Zealand shops' typical sheet sizes.
3 × 2 m handles the vast majority of metal, stone, and glass work we see across NZ shops.
02 — Cost curve
Smaller tables do not save much.
Production cost for a 2.5 × 1.5 m table is close to a 3 × 2 m. If you have the floor space, 3 × 2 m is the better value.
03 — Track record
It is the configuration we've shipped the most.
Over 12 years, this is the platform we've installed, supported, and improved at the highest volume.
FRAME DETAIL
heat-treated welded carbon steel base
air-formed aluminium gantry
[ /assets/machines/frame-detail.webp ]
Structure
Precision that holds.
The moving gantry is air-formed aluminium — lower moving mass, so dynamic accuracy holds at the full 13 m/min traverse. The base is welded carbon steel, heat-treated to relieve stress before final machining, so the geometry the machine ships with is the geometry it keeps through years of production.
Dual-side Yaskawa AC servo drive. THK linear guides, HIWIN ball screws. Rated for a 500 kg/m² table load and a 15-year design life.
The first machine we delivered to New Zealand has been relocated twice since 2015 — and is still in daily production. [Read the case →]
§03 / Pumps
Three pump setups for three realities.
Most customers get the standard pump. Think about a different setup only when thickness, output, or maintenance continuity really changes the job.
Default · most customers
WCM-P60IV — 4th-generation intensifier.
For typical metal, stone, and glass work
Handles the standard thickness range across the materials most NZ shops cut day to day. This is what comes on the default 3 × 2 m machine, and the configuration we've shipped at the highest volume over the last twelve years.
If you don't have a specific reason to upgrade, this is the one.
Pump model
WCM-P60IV
Output
37 kW / 50 HP*
Working pressure
380–400 MPa
Max pressure
430 MPa
PSI equivalent
55,000–58,000 psi
Best for
Standard mixed work
For uptime and maintenance continuity
WCM-P60IVB — standard pump with backup intensifier.
When your operation cannot stop
If your operation cannot stop for routine pump maintenance, we add a second intensifier as backup so one unit can keep the line running while the other is serviced. Recommended for two-shift shops and contract manufacturers with hard delivery windows.
The cutting cell behaves identically; you just don't lose a day for scheduled work.
Pump model
WCM-P60IVB
Output
37 kW / 50 HP*
Working pressure
380–400 MPa
Backup unit
Identical intensifier
Switchover
Manual, < 30 min
Best for
2-shift / contract shops
For metal over 200 mm
WCM-P90III — flagship high-pressure pump.
When your baseline is genuinely thick
Choose this for metal over 200 mm. The WCM-P90III is rated at 87,000 psi · 600 MPa peak pressure, 78,000–81,000 psi · 540–560 MPa continuous working pressure, and 55 kW · 75 HP.
Most first-time buyers do not need this. We'll say so during quoting.
Pump model
WCM-P90III
Rated power
55 kW · 75 HP
Continuous pressure
78,000–81,000 psi · 540–560 MPa
Peak pressure
87,000 psi · 600 MPa
Tier
Flagship
Best for
metal over 200 mm
Which pump fits your work?
- Your typical material and thickness mix — what you cut on most days, not the edge case.
- Your expected daily cutting hours — single-shift, two-shift, or continuous.
- Whether planned downtime for maintenance is acceptable, or whether the line must keep running.
§05 / Cases
Delivering to New Zealand since 2015.

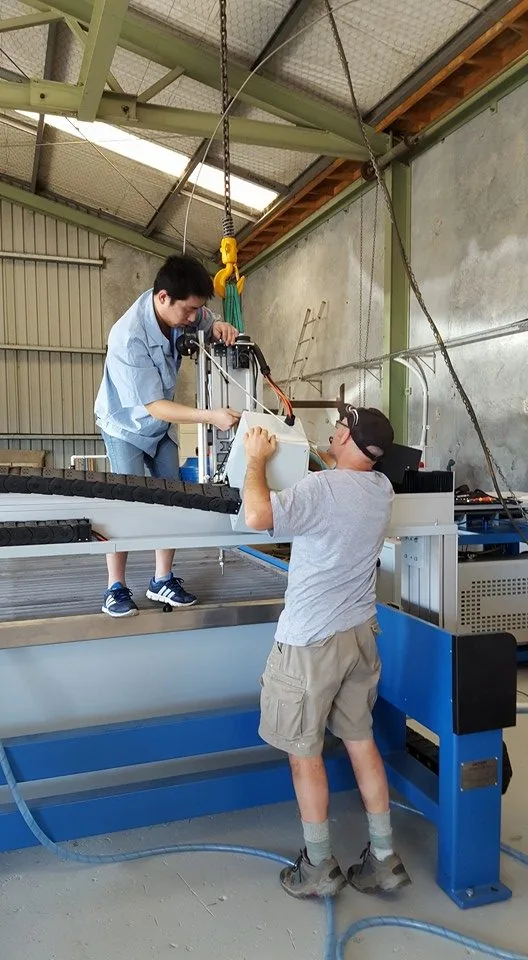

The first VICHOR machine ever sent to New Zealand was installed in Waiuku, South Auckland in January 2016. We've been adding customers — and supporting that first machine — ever since.
Scott's Steelworkz · Waiuku · since 2016
10 years on the floor. Moved twice. Still cutting.
2016
First install · NZ
4,000 h
Cumulative cutting
2 ×
Relocations
§06 / Support
After you buy.
Installation, commissioning, training, and the timelines we hold ourselves to once your machine is on the floor.
Warranty
- 2-year machine warranty — 24 months or 4,000 hours
- 5-year warranty on intensifier core components
- UHP consumables excluded
5–7
Days · install + commission
Typical installation on the customer's floor, including commissioning and full operator training.
2–3
Days · operator to basic
New operators typically reach basic independent operation in two to three days of supervised use.
12 / 24
Hour response / diagnosis
12-hour first response, 24-hour initial diagnosis on remote tickets. We staff WhatsApp during NZ business hours.
72
Hour parts dispatch target
Standard wear parts dispatch within 72 hours. Lifetime remote support — there is no service contract clock.
